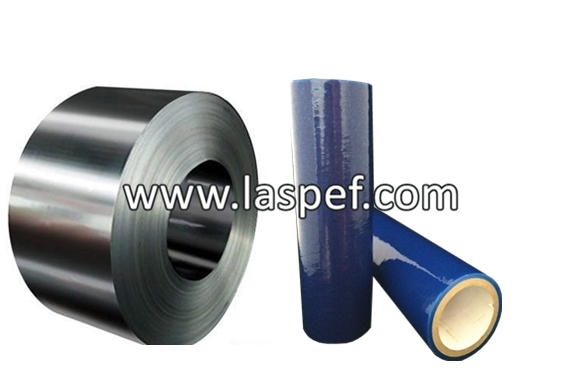

Sandwich panel protective film

Protective UV-resistant film for sandwich panels, galvanized and pre-painted steel, insulated and metal roofing panels. Prevents surface damage during handling, transport and storage while supporting custom branding with printable film options.

Sandwich panel protective film

TECHNICAL DATA SHEET

Products Name : Sandwich Panel Protective Film

Base : PE

Type of Adhesive : Water based glue/Solvent-based acrylic adhesive

Color : White,Clear/Transparent,Blue,White Black etc.

Thickness(Micorn/μ) : Widely use: 20mic ,25mic,30mic,40mic,50mic,60mic etc

Width : Widely use:1000mm,1220mm,1250mm. Max width:2500mm

Length : Widely use:500m,1000m etc

Printability : Up to 5 colors

Tensile Strength : Longitudinally>8N/25mm Horizontal>15N/25mm

Elongation : Longitudinally>300% Horizontal>180%

UV Resistance : Available

Applications
LASPEF protective film is suitable for:

  • Sandwich panels

  • Galvanized steel

  • Pre-painted steel

  • Insulated panels

  • Metal roofing panels

Perfect products need good protection!


Product Benefits

  • Prevents damage to surfaces during forming and processing, reducing expensive reworking and production losses (especially with pre-painted galvanized steel).

  • Protects the surface of valuable products during handling, mechanical processing, transport, assembly and storage.

  • Can enhance your brand image by printing your logo on the film surface.

  • Available in various qualities, colours, printability options, thicknesses, lengths, widths and adhesive strengths.


Application & Handling Instructions

  • Surfaces must be dry and free from dust, oil, solvents and other contaminants before application.

  • Best results are achieved when the surface and ambient temperature are between +15°C and 40°C.

  • Use laminating machines with rubber-coated press rollers.

  • Avoid excessive film elongation and minimise formation of air bubbles and folds during lamination.

  • Film removal is recommended at temperatures between 5°C and 40°C (do not remove below 5°C).

  • The film is not suitable for extreme thermoforming.
